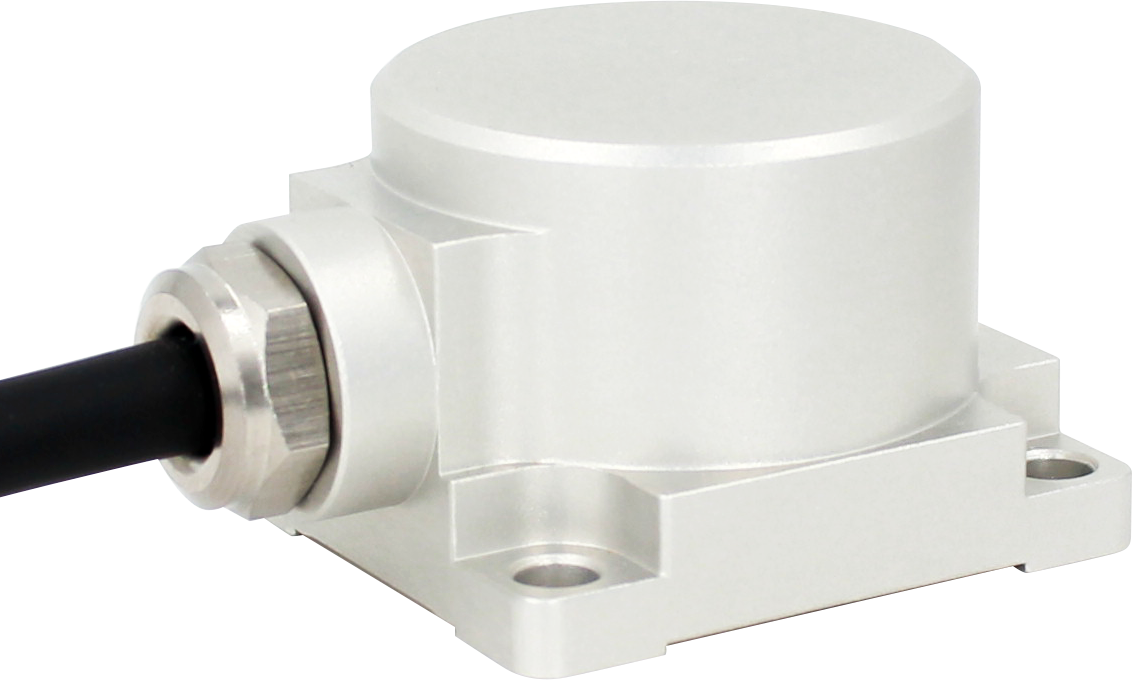

Three axes (X, Y, Z)
Output current: 4~20 mA
Power supply voltage: 9~36V
Shock resistance: 2000G
Operating temperature: -40℃~ +85℃
Storage temperature: -40℃ ~ +85℃
Excellent deviation stability, good environmental performance (shock, vibration and temperature)
Product Description
Scope of application
Parameter
Dimensions
DownloadThe AKM398 three-axis accelerometer is a widely used acceleration sensor series product independently developed and produced, which can be applied in multiple fields such as vibration testing and impact testing. The product adopts analog current output. AKM398 is a single crystal silicon capacitive sensor, consisting of a silicon chip that has undergone micro mechanical processing, a low-power ASIC for signal adjustment, a microprocessor for storing compensation values, and a temperature sensor. This product has low power consumption, has been calibrated, has a sturdy structure, and stable output. The new electronic configuration provides solid-state power for reset and comprehensive protection against over voltage. This series of products features sturdy structure, low power consumption, and excellent deviation stability, ensuring outstanding output reliability.
| AKM398 | PARAMETER | UNIT | |||||
| Measure range | ±2 | ±4 | ±8 | ±10 | ±20 | ±40 | g |
| Deviation calibration | <1 | <1 | <1 | <1 | <1 | <1 | mg |
| Measure axis | X,Y,Z | X,Y,Z | X,Y,Z | X,Y,Z | X,Y,Z | X,Y,Z | Axis |
| Repeatability of power-on/off | <2 | <2 | <2 | <2 | <2 | <2 | mg(max) |
| Sensitivity (± 10%) | 4 | 2 | 1 | 0.8 | 0.4 | 0.2 | mA/g |
| Temp. coefficient of deviation | 0.01 | 0.01 | 0.01 | 0.05 | 0.05 | 0.05 | %/℃ |
| Resolution/Threshold (@ 1Hz) | < 1 | < 1 | < 1 | < 1 | < 1 | < 1 | mg(max) |
| Nonlinearity | <0.5 | <0.5 | <0.8 | <1 | <1 | <1 | % FS（max） |
| Response frequency | 500 | 500 | 500 | 500 | 500 | 500 | Hz |
| Bandwidth (3DB) | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | Hz |
| Cross-axis sensitivity | 1 | 1 | 1 | 2 | 2 | 2 | % |
| Lateral Vibration Sensitivity Ratio | 1 | 1 | 2 | 5 | 5 | 5 | % |
| Resonant frequency | 2.4 | 2.4 | 2.4 | 5.5 | 5.5 | 5.5 | kHz |
| Noise density | 21 | 21 | 21 | 86.6 | 86.6 | 86.6 | μg/√Hz |
| 0g output 12 mA | <0.005 | <0.005 | <0.005 | <0.003 | <0.003 | <0.003 | mA |
| Output current | 4~20mA | ||||||
| Reliability | MIL-HDBK-217, Class II | ||||||
| Impact resistance | 100g @ 11ms, triaxial (half sine wave) | ||||||
| Recovery time | < 1ms (1000g, 1/2 sin 1ms, impact on i-axis) | ||||||
| Vibration | 20g RMS, 20-2000Hz (random noise, o, p, I 30 min per axis) | ||||||
| Input (VDD _ VSS) | 9-36 VDC | ||||||
| Operating current consumption | <60mA @ 12 VDC | ||||||
| protection | IP67 | ||||||
| Material | aerospace aluminum | ||||||
| Weight | Product net weight: ≤116g, magnetic base: ≤50g | ||||||
| Size | Product size: L36 × W32 × H24mm Size of magnetic adsorption base plate: L36 × W32 × H7mm | ||||||

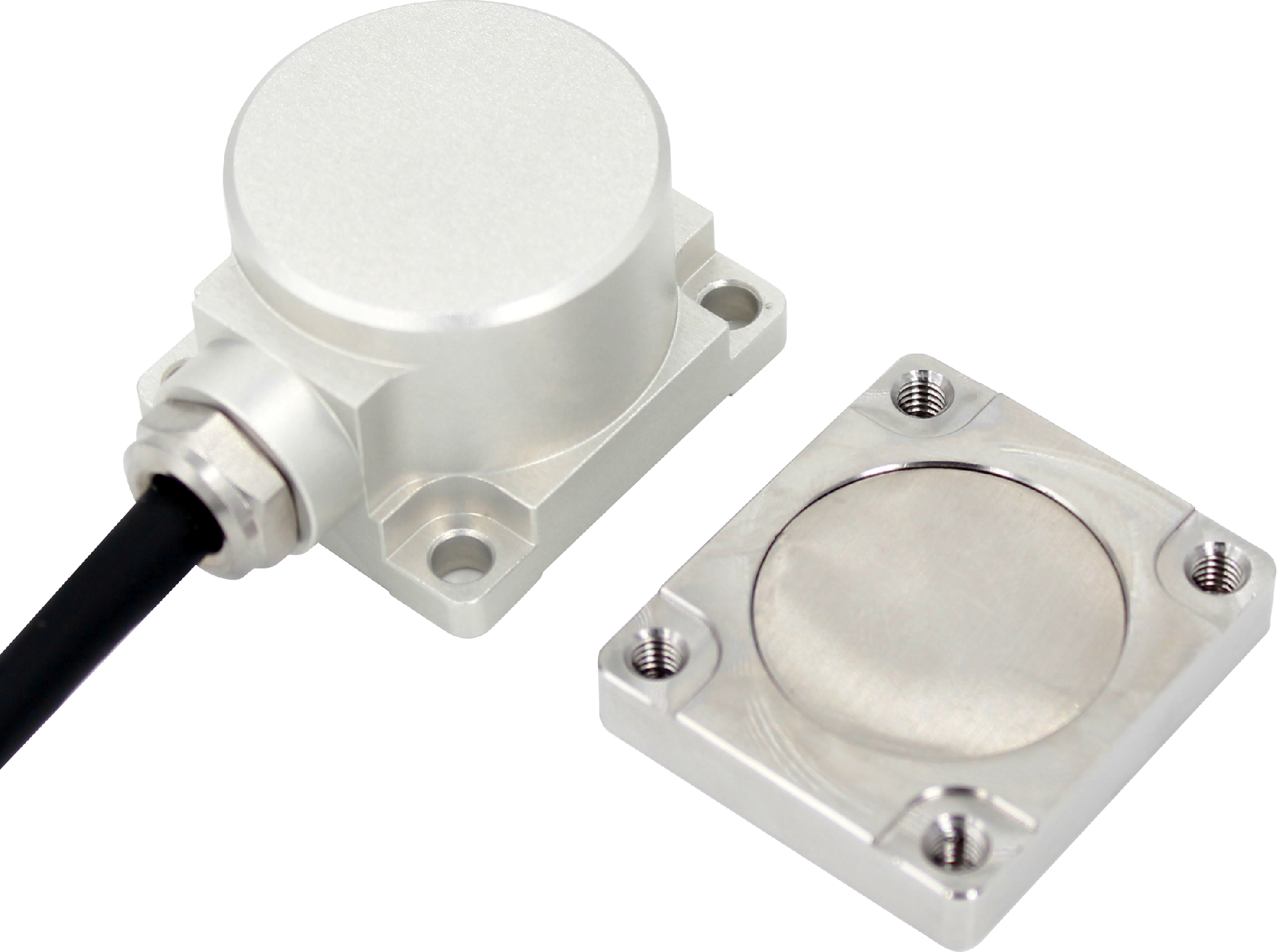

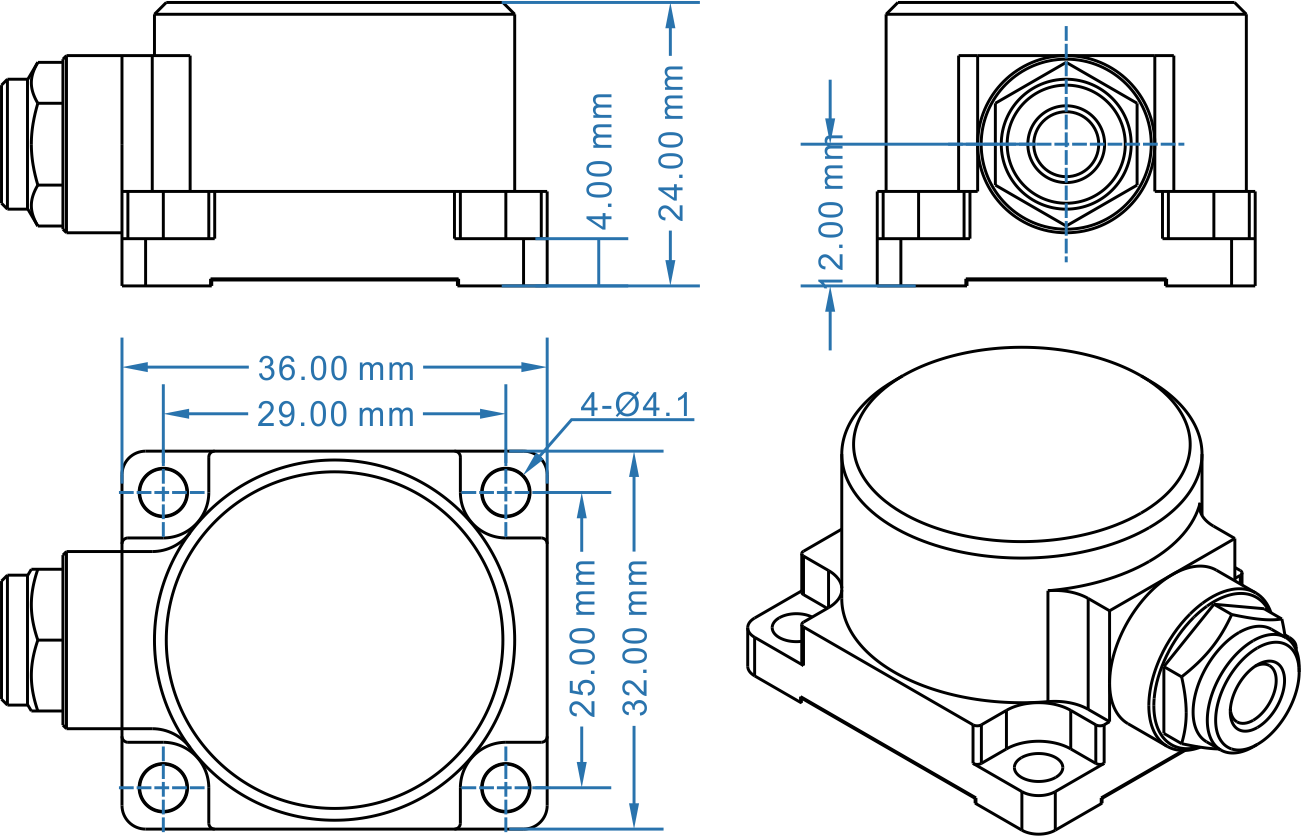

L36×W32×H24mm
L29×25×4mm
4 M4 screws
