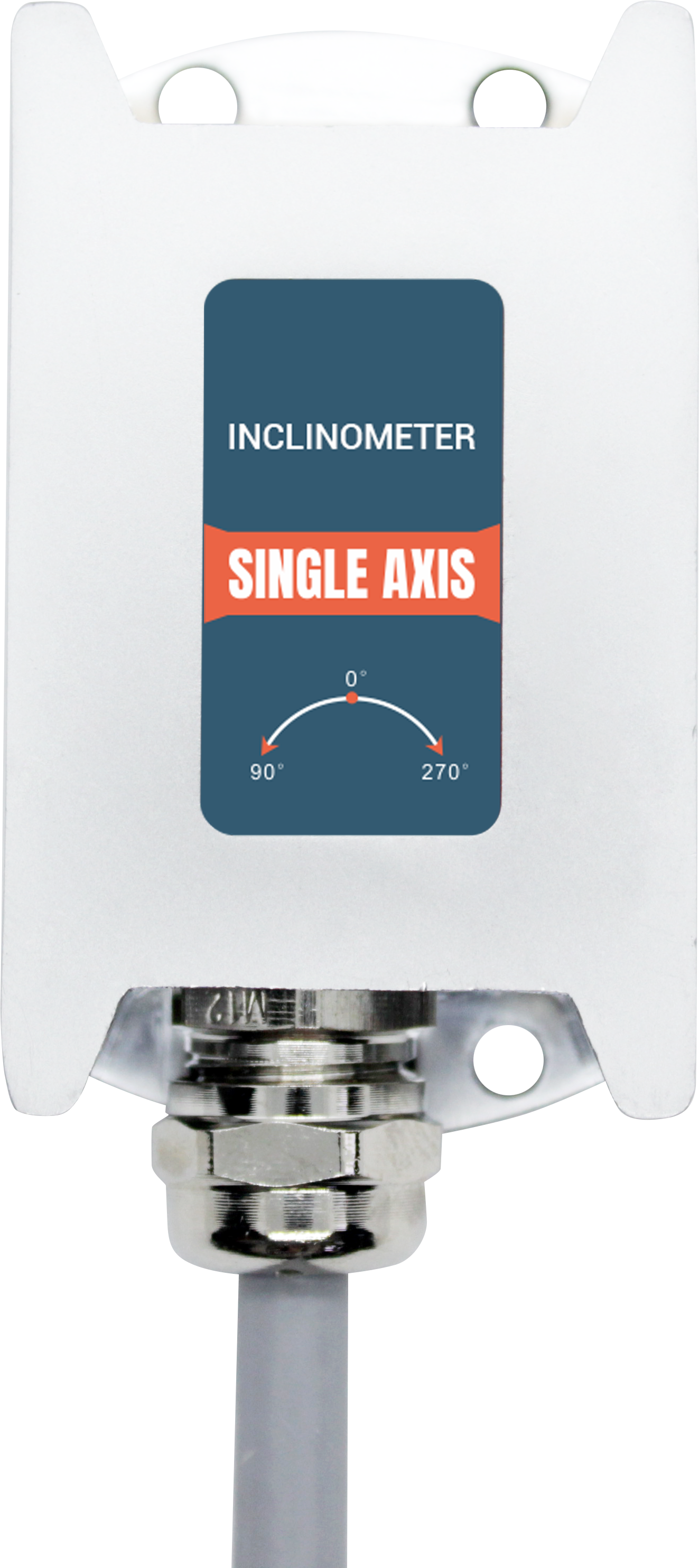

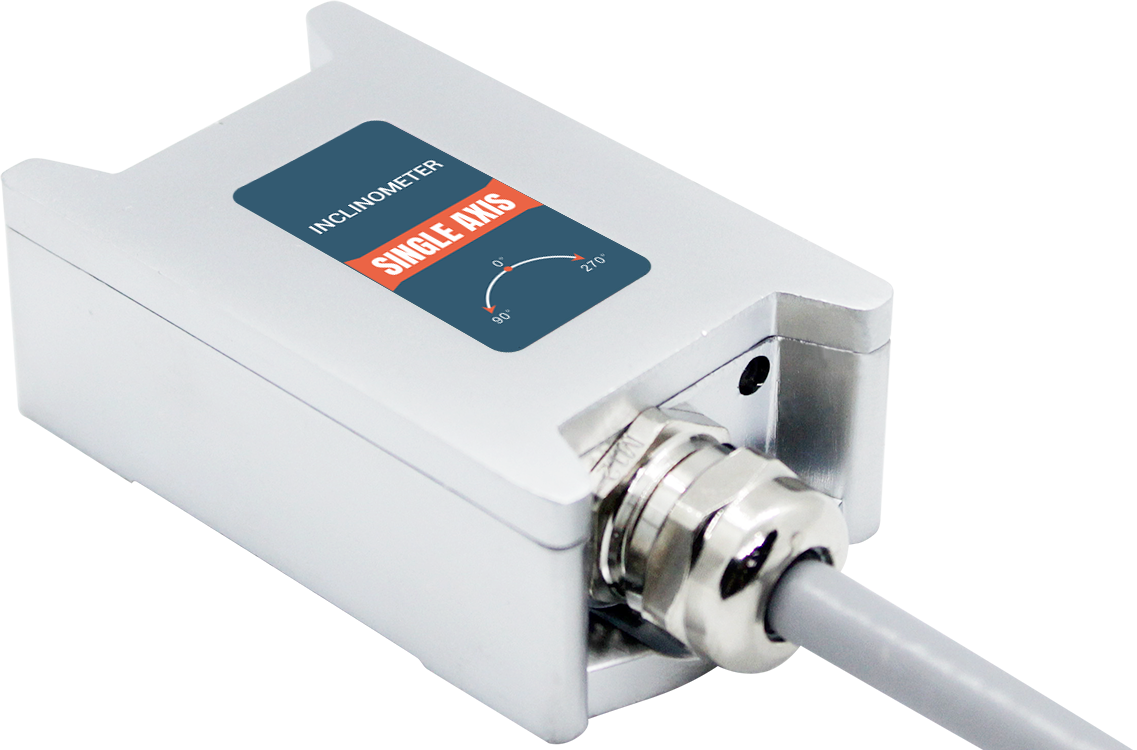

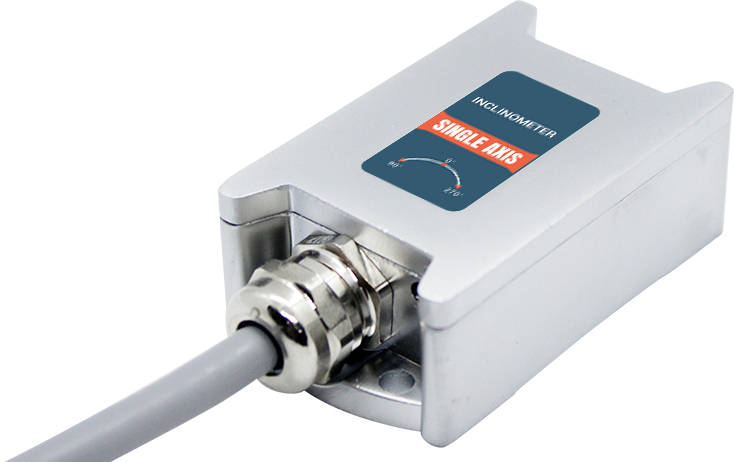

SINGLE AXIS INCLINOMETER

Product Description

The WCA360M single-axis tilt sensor is a new, low-cost tilt measurement product developed in-house. It features the latest anti-interference platform design, integrates a novel micro-mechanical sensing unit, and offers wide temperature operating performance with superior anti-vibration capabilities. It is stable and reliable for long-term operation, with an effective working life of up to 10 years. This product employs a non-contact principle to measure the tilt angle of an object. It calculates the real-time tilt angle by measuring the component generated by the earth's gravity through an internal capacitive micro-mechanical unit. It is easy and convenient to install, requiring only to be fixed on the object being measured. There is no need to fix the axis and rotating shaft, meeting customer measurement needs. It is an ideal accessory for industrial equipment such as construction machinery vehicles and agricultural machinery.

Scope of application

Solar PV Tracking Control

Bridge monitoring

Track Monitoring

PARAMETERS

WCA360M	condition	parameter	unit
Rang	single-axis	0～360°	°
Resolution	-	0.1	°
Measurement accuracy	25℃	±0.2	°
Tempdrift characteristics	-40～+85℃	±0.003	°/℃
Response time	No filtering	0.1	s
Operating temp	-40℃~85℃
Output interface	RS485 (MODBUS protocol)
Output load	>500 ohms
Working Hours	50,000 hours/time (no malfunction)
Insulation resistance	>100 MΩ
Vibration resistance	10grms/10~1000Hz
Impact resistance	100g@11ms/Three-axis (half-sine wave)
weight	≤200g(Including 1-meter cable)

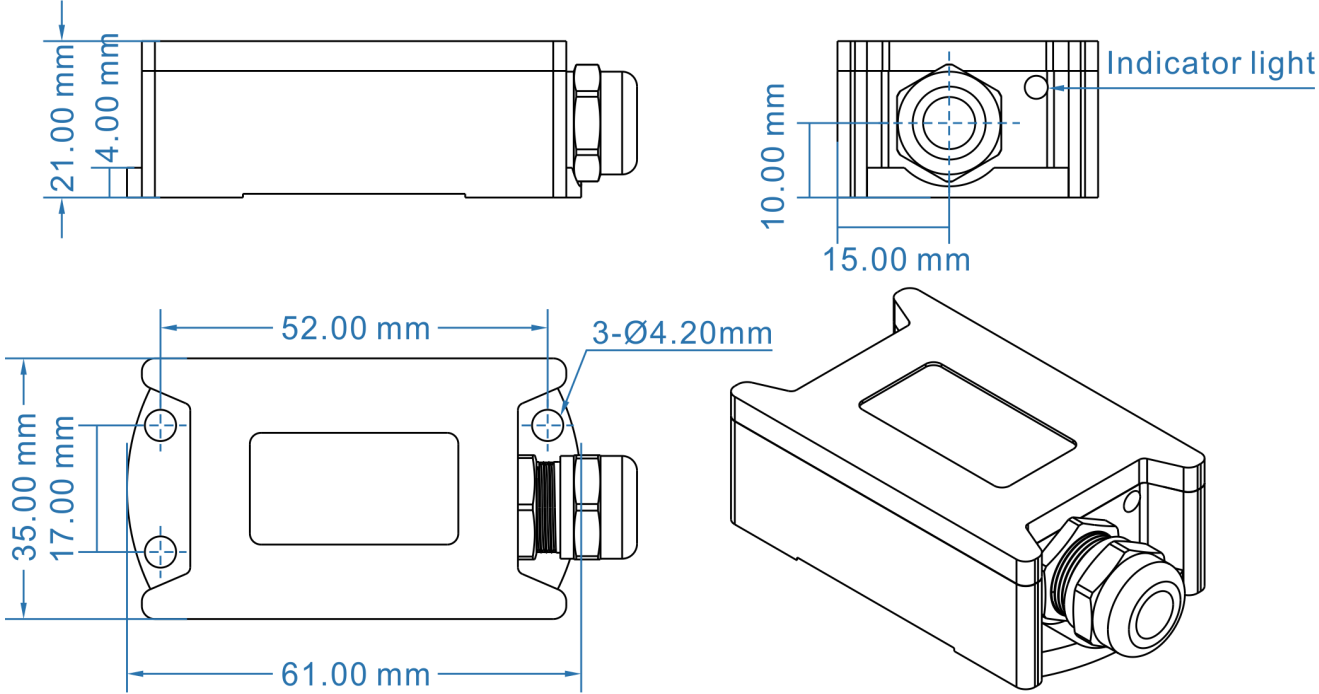

Dimensions

Size description

Shell size

L24.5×W19×H21mm

Specifications and Software

* Please contact the online sales engineer to obtain the product specification of Rion, or email sales@rion-tech.net to obtain it.

Download Specifications

WCA360M SINGLE AXIS TILT SENSOR

File Location: Download Specifications /WCA Tilt Angle Module Series/WCA360M
TILT SENSOR

Update Time: 2026-10-13 16:44

File Size: 5.2MB
