Home ANGLE LEVEL SWITCH Relay output type RION LCA341 / 342
RION LCA341 / 342

RELAY OUTPUT TYPE TILT SWITCH

Single/dual axis

Accuracy: 0.1°

RS232 set alarm angle

Switch/replay output

Resolution: 0.01°

Positive/negative output

  • Product Description
  • Scope of application
  • Parameter
  • Dimensions
  • Download

Product Description

LCA341 / LCA342 series a low cost tilt switch developed by RION for application like level safety alarming and platform level monitor and alarm. There is relay output circuit inside. Alarm threshold value is pre-stable. when the inclination exceed set alarm value, it will output relay output signal(drive current 1A) to drive the solenoid valve hydraulic system or drive buzzer or alarming light for the safety of platform. Its main function is to monitor and alarm the(dual axis or single axis) inclination of platform automatically. It is well-designed, the temperature and linearity are compensated. It has short-circuit, high voltage, surge protection etc. And all its components meet the requirement of industry application.

Scope of application

Engineering vehicle leveling

Bridge and Dam Monitoring

Minecart/Railcar Monitoring

SPECIFICATIONS

LCA341 / LCA342

CONDITIONS

PARAMETER

UNIT

Measure range



±15

°

Measure axis



X/X Y

 Axis

Resolution



0.05

°

Measure accuracy



0.1

°

Long-term stability



0.05

°

Zero temp. coeffiecient

-40～85℃

±0.006

°/℃

Temp. Sensitivity coefficient

-40～85℃

≤100

ppm/℃

Power on time

0.1

S

Response time

0.2

s

Electromagnetic compatibility

According to EN61000 and GBT17626

MTBF

≥50000hours/times

Insulation Resistance

≥100MΩ

Impact resistance

100g@11ms、3 axial direction (half sinusoid)

Anti-shock

10grms、10～1000Hz

Protection grade

Direct lead IP67; Aviation plug IP65

Cables

1m, durable, grease proof, wide temperature, shield cable, 4*0.4 mm2

Weight

140g(without cable)

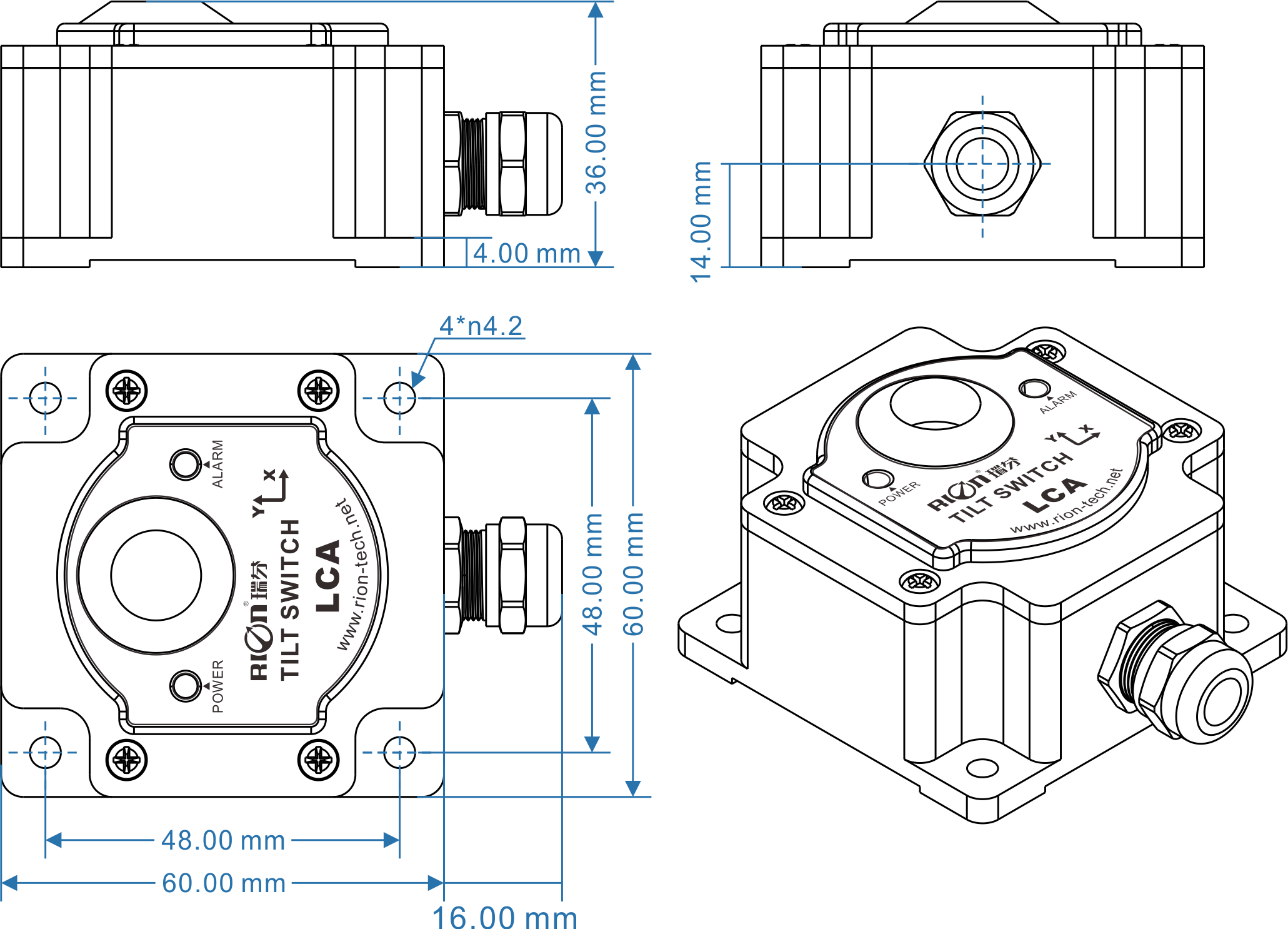

Dimensions



Size Description

  • Shell size

    L76×W60×H36mm

  • Installation size

    L48×W48×H6mm

  • ounting screws

    4 M4 screws

Specifications and Software

* Please contact the online sales engineer to obtain the product specification of Rion, or email sales@rion-tech.net to obtain it.
