Home ANGLE LEVEL SWITCH Relay output type SCA131 & SCA132
Switch output Tilt Sensor
SCA131 & SCA132
Switch output Tilt Sensor

Single/double axis inclination measurement

RS232 series output

Switch output（high-low level)

Resolution : 0.01°

Wide temperature working: -40～+85℃

IP67 protection class

  • Product Description
  • Scope of application
  • Parameter
  • Dimensions
  • Download

Product Description

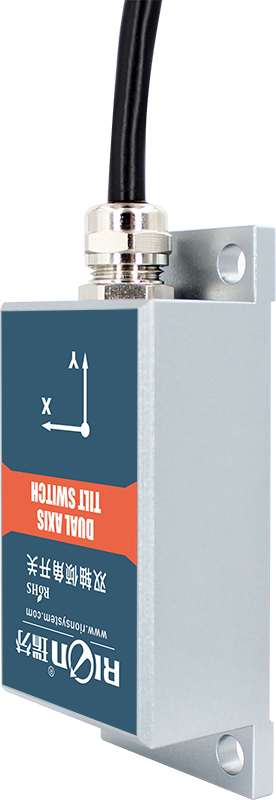

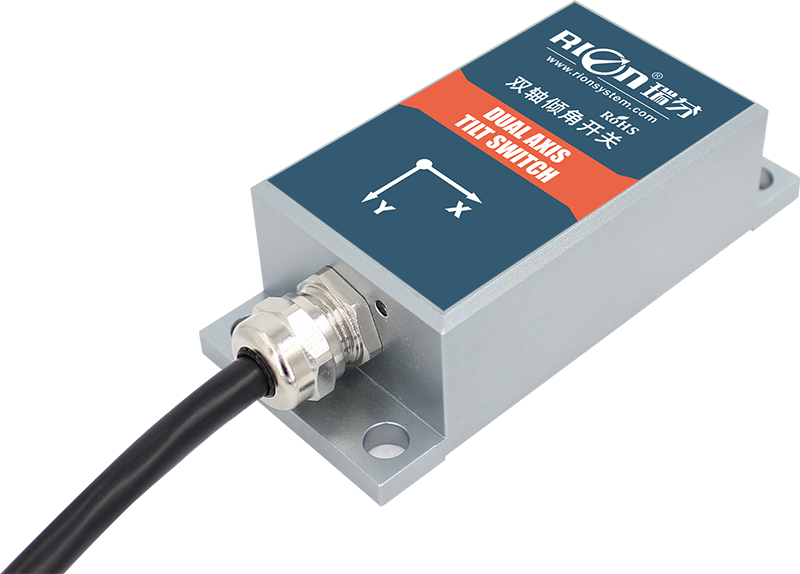

SCA141/SCA142 is a digital type dual-axis tilt switch developed by RION company who integrated Finland control core unit , and based on level security alarm and platform leveling detection related industries application , built-in relay output circuit . Users can set alarm angle value by themselves, it will output a no contact relay signals (drive current 1A)when exceeds the safety angle value, Open the electronic valve to control the corresponding hydraulic leg leveling .This product with design precision, again to compensate the temperature and linearity, integrated short-circuit, high-voltage transient, polarity and surge etc. full protection functions, suitable for a variety of harsh industrial environments operating. Using the industrial grade MCU, three-anti PCB, import cable, wide temperature metal enclosure and other measures etc. to improve the industry level on products reliability and stability.

Scope of application

Engineering vehicle leveling

Bridge and Dam Monitoring

Minecart/Railcar Monitoring

SPECIFICATIONS

SCA141 / SCA142

CONDITIONS

PARAMETERS

UNIT

Measure rang


±15

°

Measure axis


X   Y

Axis

Resolution


0.01

°

Measure accuracy


0.05

°

Long term stability


0.05

°

Zero Temp. coefficient

-40～85℃

±0.006

°/℃

Sensitivity temp. coefficient

-40～85℃

≤100

ppm/℃

Power on time


0.1

S

Response time


0.2

s

EMC

According to EN61000 and GBT17626

MTBF

≥50000 hours/times

Insulation Resistance

≥100M

Shockproof

100g @ 11ms,3 axial direction (half sinusoid)

Anti-vibration

10grms、10～1000Hz

Protection glass

IP67

Cables

Standard 1M length/wearproof/grease proofing/wide temp./Shielded cables 4*0.4mm2

Weight


≤220g(without cable)

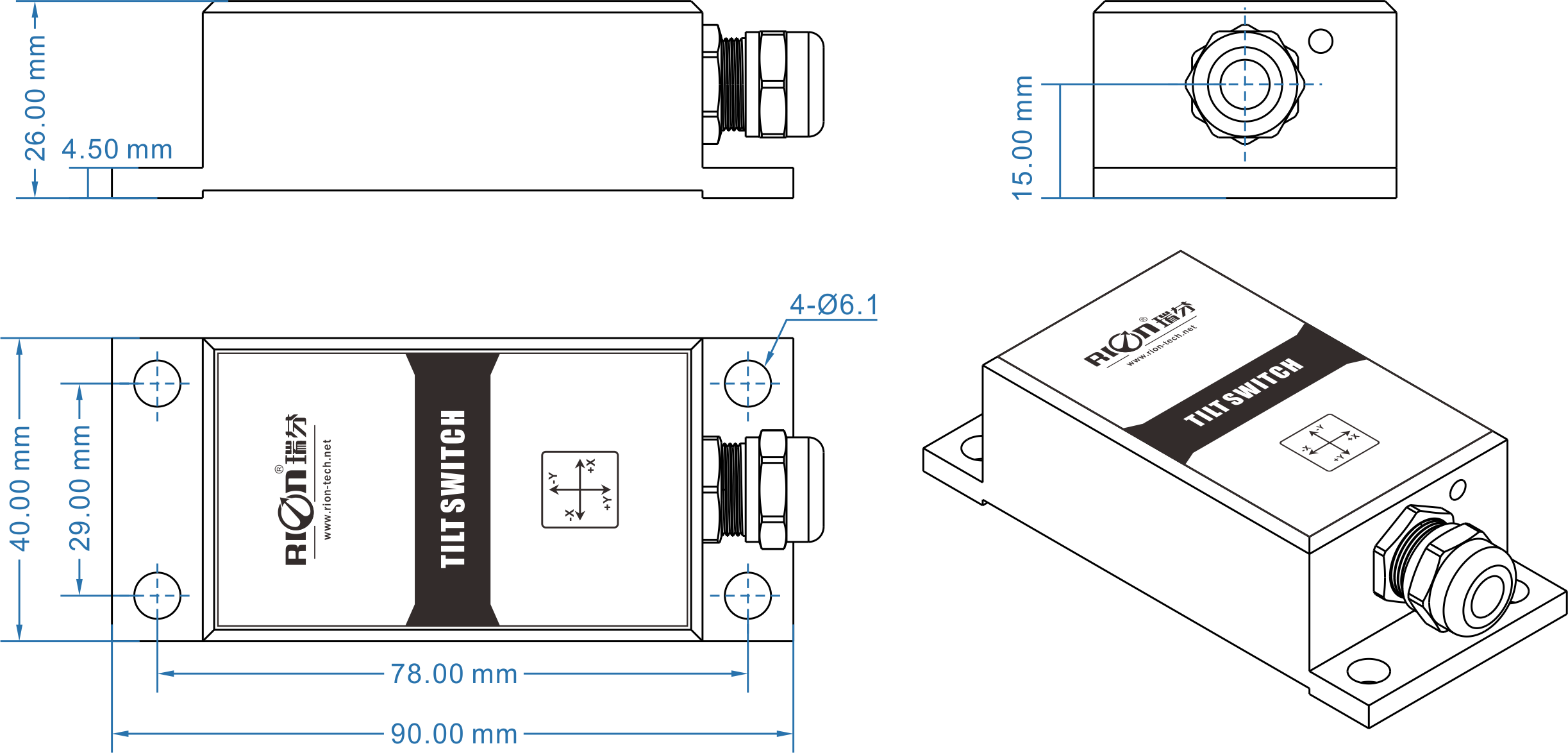

Dimensions



Size Description

  • Shell size

    L90×W40×H26mm

  • Installation size

    L78×W29×H4.5mm

  • ounting screws

    4 M6 screws

Specifications and Software

* Please contact the online sales engineer to obtain the product specification of Rion, or email sales@rion-tech.net to obtain it.
