Measure range : Roll ±180°, Pitch ±85°, Azimuth 0-360°
Azimuth accuracy : 0.3~ 0.5°
Output interface : RS232 , RS485, TTL
Power supply : DC5V (Default)
Dimension : L111.5 x W19.5 x H19.5mm
Hardware & Software magnetic and inclination compensation
Product Description
Scope of application
Parameter
Dimensions
Download
HCM600/HCM605 is a dynamic and high-precision 3 axis electronic compass, which integrates three-axis accelerometer, three-axis gyroscope and three-axis magnetic sensor. The roll angle, pitch angle, and heading angle data are dynamically calculated in real time through a 32bit high-speed processor. , it has three working modes: pure compass, 9-axis fusion mode and 9-axis fusion anti-jamming mode (anti-temporary-interference), using a three-axis accelerometer and a three-axis gyroscope to compensate heading angle error caused even by big tilt angle, and adopting hard iron and soft iron calibration algorithms, so that the roll angle can still provide a high-precision heading angle within the range of ±180°. It is long strip shape with width of only 1.95CM. with high performance, reliability, small size and low power consumption, it is suitable for measuring attitude and heading angles in many fields such as antenna stability, vehicles, and drones. User can order complete product with housing (up to IP67 waterproof level) or compass module.
Engineering vehicle leveling
| HCM600B/HCM605B parameters | ||
| heading | Heading accuracy | 0.5° tilt<10° |
| Resolution | 0.1° | |
| Tilt parameters | Pitch accuracy | 0.1°<15°(measure range) |
| 0.1°<30°(measure range) | ||
| 0.1°<60°(measure range) | ||
| 0.2°<85°(measure range) | ||
| Pitch range | ±85° | |
| Roll accuracy | 0.1°<15°(measure range) | |
| 0.1°<30°(measure range) | ||
| 0.1°<60°(measure range) | ||
| 0.2°<180°(measure range) | ||
| Roll range | ±180° | |
| Resolution | 0.1° | |
| Calibration | Hard iron calibration | Yes |
| Soft iron calibration | Yes | |
| Magnetic interference calibration | Rotate 360deg horizontally; vertical rotation(option) | |
| Physical feature | Size | L111.5×W19.5×H19.5mm |
| Weight | ≤85g(exclude cable) | |
| RS232/RS485/TTL | 5PIN quick plug connector | |
| interface | Start delay | <50ms |
| Max output speed | 20Hz/s | |
| Communication speed | 2400 to 115200baud (default 9600) | |
| Output format | Binary High-performance Protocol | |
| Power | Power voltage | (default) DC+5V |
| Current(max) | 30mA | |
| Ideal mode | 26mA | |
| Hibernate mode | TBD | |
| Environment | Operating range | -40℃~+85℃ |
| Storage temperature | -40℃~+85℃ | |
| Vibration resistance | 100g | |
| | Protection | IP67 |
| Electromagnetic compatibility | According to EN61000 and GBT17626 | |
| MTBF | ≥98000 hours/time | |
| Insulation resistance | ≥100mego-ohm | |
| Impact resistant | 100g11ms, 3 Axial Direction (Half Sinusoid) | |
| Anti-Vibration | 10grms, 10~1000Hz | |

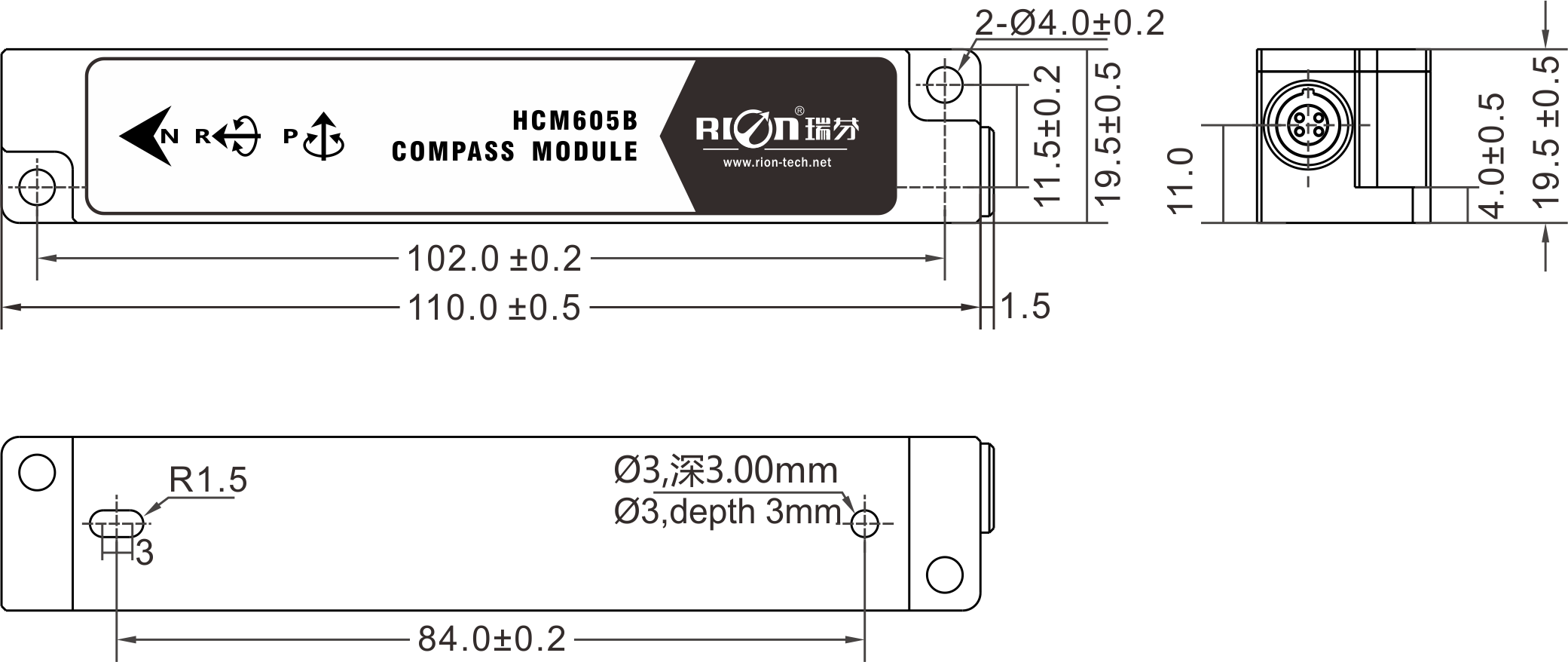

L110×W19.5×H19.5mm
L102×W11.5×H4mm
2 M4 screws
